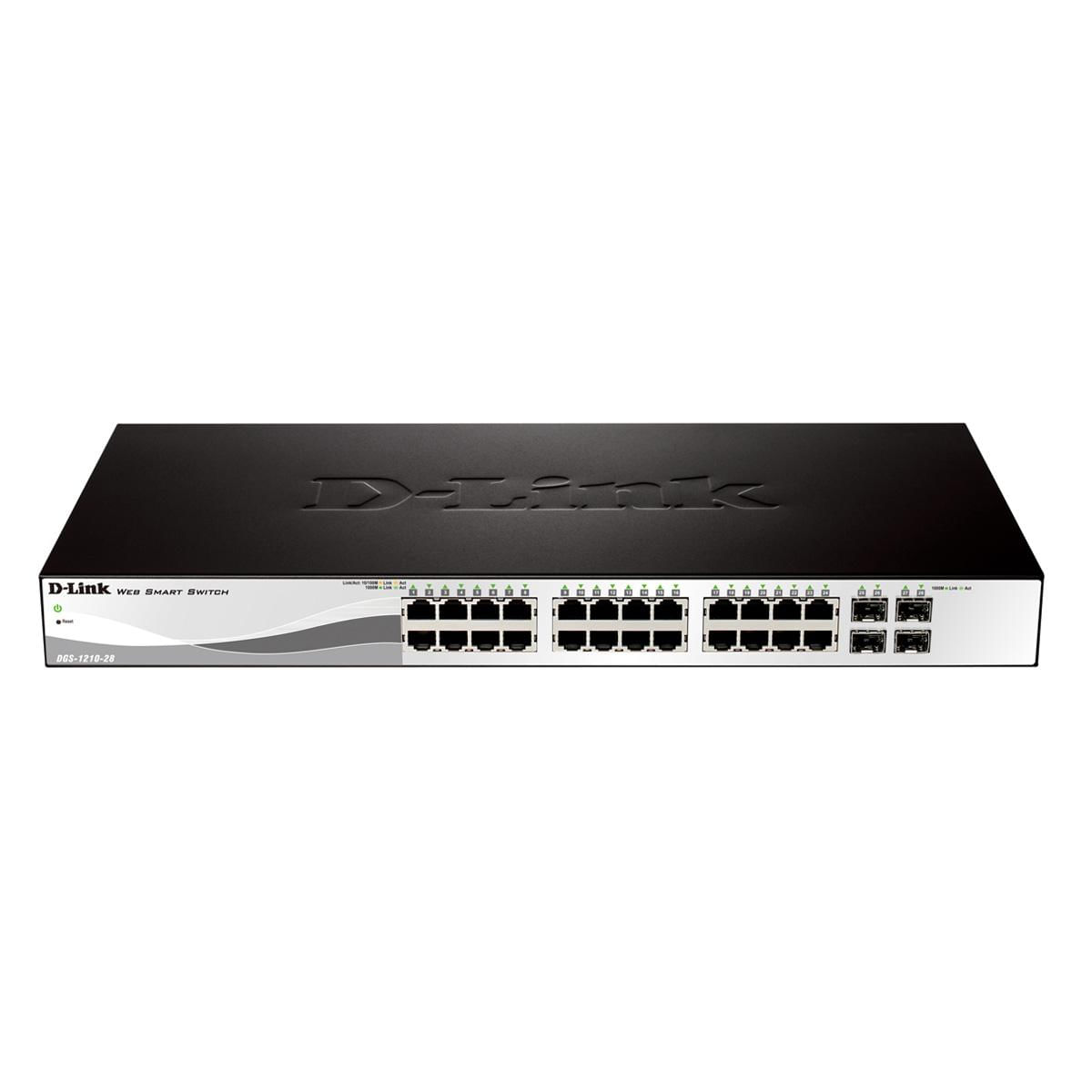

Switch 24 Portas D-link DGS-1210-28 - Gerenciável - 24 Portas Gigabit + 4 Portas Combo/sfp

Switch 24p D-link Dgs-1210-28 Web Smart - 1000mbps

PN: Dgs-1210-28

Características Técnicas

• Tecnologia Green - Ieee 802.3az Energy Efficient Ethernet - D-link Green 3.0
• Power-slaving Features - Led And Port Shutoff - Port Standby - System Hibernation - Cable Length Detection - Link Status Detection - Time-based Poe (poe Model Only)

Recursos de Segurança

• Access Control List (acl)
• D-link Safeguard Engine
• Port Security
• Arp Spoofing Prevention
• Smart Ip-mac-port Binding

Gerenciamento

• Ipv4/ Ipv6 Dual Stack1
• Web Gui (supports 10 Languages)
• Smartconsole Utility
• Snmp And Rmon
• Simplified Cli Through Telnet

QoS

• Supports Ieee 802.1p Qos
• Supports Dscp

Recursos Avançados

• Auto Surveillance Vlan
• Auto Voice Vlan
• Port Or Vlan-based Loopback Detection
• Cable Diagnostics
• Lldp/lldp-med

Trap e Logs

• Snmp Trap
• Trap For Smartconsole Utility
• System Log

Padrões de Porta e Funções

• Ieee 802.3 10base-t - Ethernet
• Ieee 802.3u 100base-tx - Fast Ethernet
• Ieee 802.3ab 1000base-t - Gigabit Ethernet
• Ieee 802.3x Flow Control - For Full-duplex Mode
• Auto-negotiation

Número de Portas

24 Portas 10/100/1000 Mbps, 4 Sfp (combo)

Cabos de Rede

Utp Cat. 5, Cat. 5e (100 M Max.) Eia/tia-568 100-ohm Stp (100 M Max.)

Full/Half Duplex

Full/half Duplex Para Velocidades De 10/100 Mbps Full Duplex Para Velocidade Gigabit

Media Interface Exchange

Auto Ou Configurável Mdi/mdix

Performance

• Capacidade De Switching 56 Gbps
• Método De Transmissão Store-and-forward
• Mac Address Table 16,000 Entradas Por Dispositivo
• Mac Address Update Up To 256 Static Mac Entries Enable/disable Auto-learning Of Mac Addresses
• Maximum 64 Bytes Packet Forwarding Rate 41.7 Mpps
• Packet Buffer Memory 1 Mb Per Device

Físico e Ambiental

• Ac Input 100 To 240 Vac 50/60 Hz Internal Universal Power Supply
• Maximum Power Consumption 16.81 W
• Standby Power Consumption 5.9 W/110 V, 6.42 W/240 V
• Heat Dissipation 57.36 Btu/h
• Operating Temperature -5 To 50 C (41 To 122 F)
• Storage Temperature -20 To 70c (-4 To 158 F)
• Operating Humidity 0% To 95% Non-condensing
• Storage Humidity 0% To 95% Non-condensing
• Dimensions 440 X 210 X 44 Mm (17.32 X 8.27 X 1.73 Inches) 19`` Standard Rack Mounting Width, 1u Height
• Weight 2.9 Kg (6.39 Lbs)

Diagnostic Leds

• Power (per Device)
• Link/activity/speed (per 10/100/1000 Mbps Port)
• Link/activity/speed (per Sfp Port)

MTBF

236,739 Hours

Certificações

• Fcc Class A
• Ce Class A
• Ices-003
• Vcci Class A
• C-tick
• Bsmisafety Cul Ce Lvd
